| REFERENCE | |||||||||
| Turbo Reference Data | Compressor | Turbine | |||||||
| Turbo PN | CHRA PN | Inducer | Exducer | Trim | A/R | Inducer | Exducer | Trim | A/R |
| 836023-5004S | 835995-0003 | 46mm | 60mm | 60 | 0.80 | 53mm | 42mm | 62 | 0.64 |

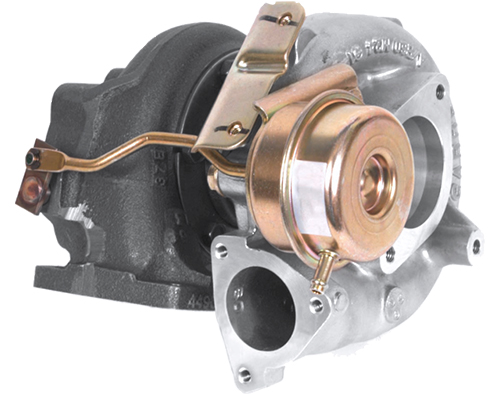

GT2560R
Horsepower:
170 – 270
Displacement:
1.4L – 2.2L
Related Products
-
GT2860RS
REFERENCE Turbo Reference Data Compressor Turbine Turbo PN CHRA PN Inducer Exducer Trim A/R Inducer Exducer Trim A/R 836026-5013S 835998-0007 47mm 60mm 62 0.60 54mm 47mm 76 0.86 836026-5014S 835998-0007 47mm 60mm 62 0.60 54mm 47mm 76 0.64 Notes: Turbine Kit PN A/R Inlet Outlet Wastegate Divided Trim Additional Turbine Housing Options 827690-0005 0.64 T25 5-Bolt Wastegated N 76 827690-0004 0.86 T25 5-Bolt Wastegated N 76 827690-0001 0.57 V-Band V-Band Free Float N 76 827690-0002 0.72 V-Band V-Band Free Float N 76
-
GT2860R
REFERENCE Turbo Reference Data Compressor Turbine Turbo PN CHRA PN Inducer Exducer Trim A/R Inducer Exducer Trim A/R 836026-5005S 835998-0006 47mm 60mm 62 0.60 54mm 47mm 76 0.64 Notes: Turbine Kit PN A/R Inlet Outlet Wastegate Divided Trim Additional Turbine Housing Options 827690-0005 0.64 T25 5-Bolt Wastegated N 76 827690-0004 0.86 T25 5-Bolt Wastegated N 76 827690-0001 0.57 V-Band V-Band Free Float N 76 827690-0002 0.72 V-Band V-Band Free Float N 76
-
GT2871R
REFERENCE Turbo Reference Data Compressor Turbine Turbo PN CHRA PN Inducer Exducer Trim A/R Inducer Exducer Trim A/R 836026-5020S 835998-0010 53mm 71mm 56 0.60 54mm 47mm 76 0.86 836026-5021S 835998-0010 53mm 71mm 56 0.60 54mm 47mm 76 0.64 Notes: Turbine Kit PN A/R Inlet Outlet Wastegate Divided Trim Additional Turbine Housing Options 827690-0005 0.64 T25 5-Bolt Wastegated N 76 827690-0004 0.86 T25 5-Bolt Wastegated N 76 827690-0001 0.57 V-Band V-Band Free Float N 76 827690-0002 0.72 V-Band V-Band Free Float N 76
