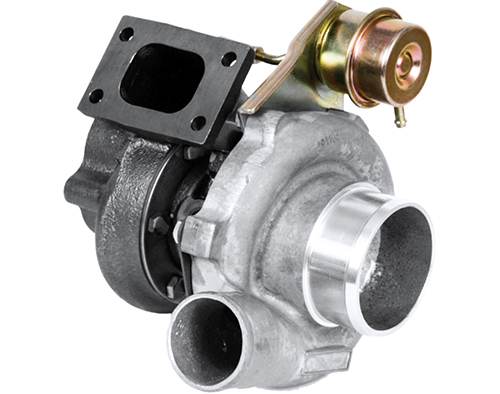

GT2860RS

Horsepower:

250 – 360

Displacement:

1.8L – 3.0L

Kategoriler:
REFERENCE
Turbo Reference Data Compressor Turbine
Turbo PN CHRA PN Inducer Exducer Trim A/R Inducer Exducer Trim A/R
836026-5013S 835998-0007 47mm 60mm 62 0.60 54mm 47mm 76 0.86
836026-5014S 835998-0007 47mm 60mm 62 0.60 54mm 47mm 76 0.64
Notes: Turbine Kit PN A/R Inlet Outlet Wastegate Divided Trim
Additional Turbine Housing Options 827690-0005 0.64 T25 5-Bolt Wastegated N 76
827690-0004 0.86 T25 5-Bolt Wastegated N 76
827690-0001 0.57 V-Band V-Band Free Float N 76
827690-0002 0.72 V-Band V-Band Free Float N 76
