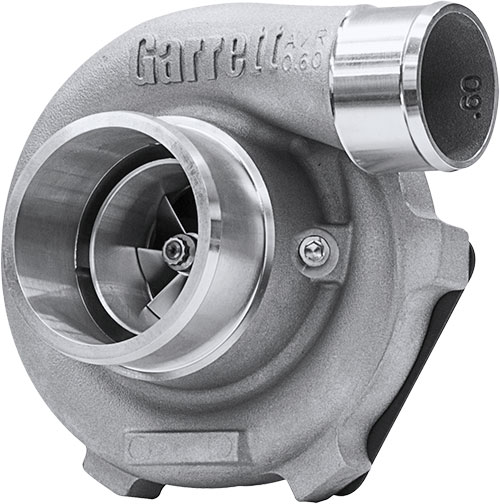

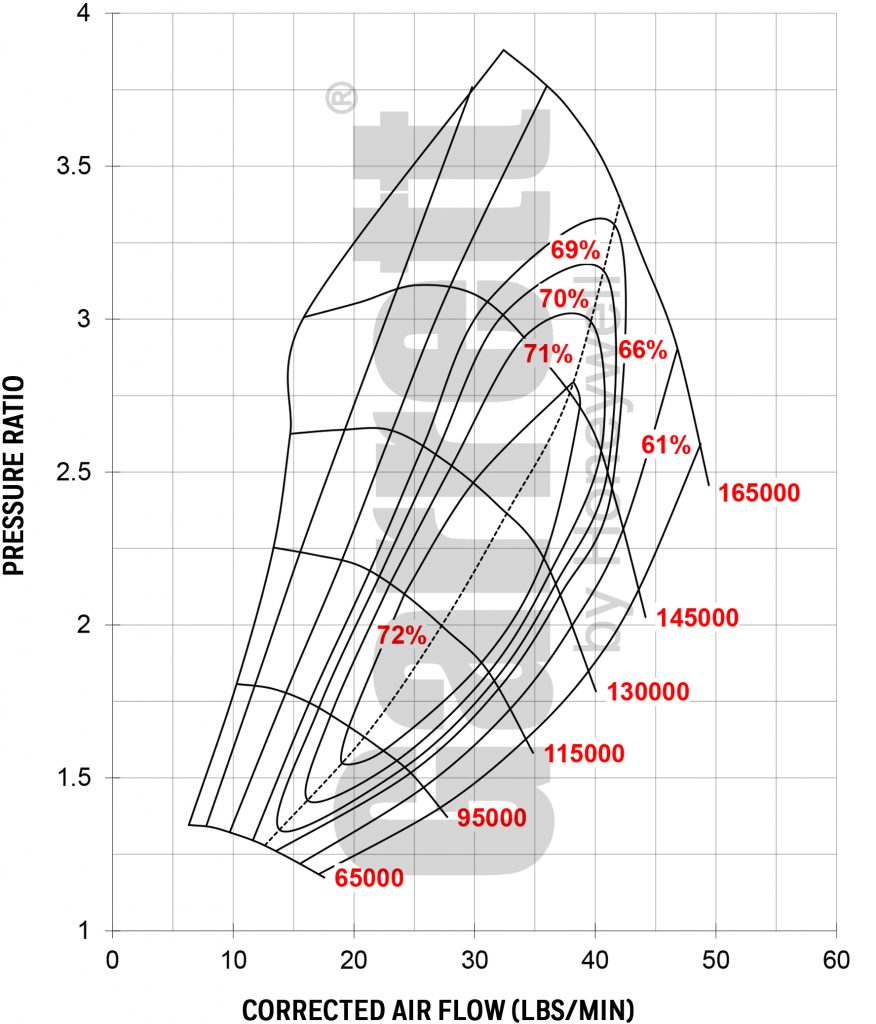

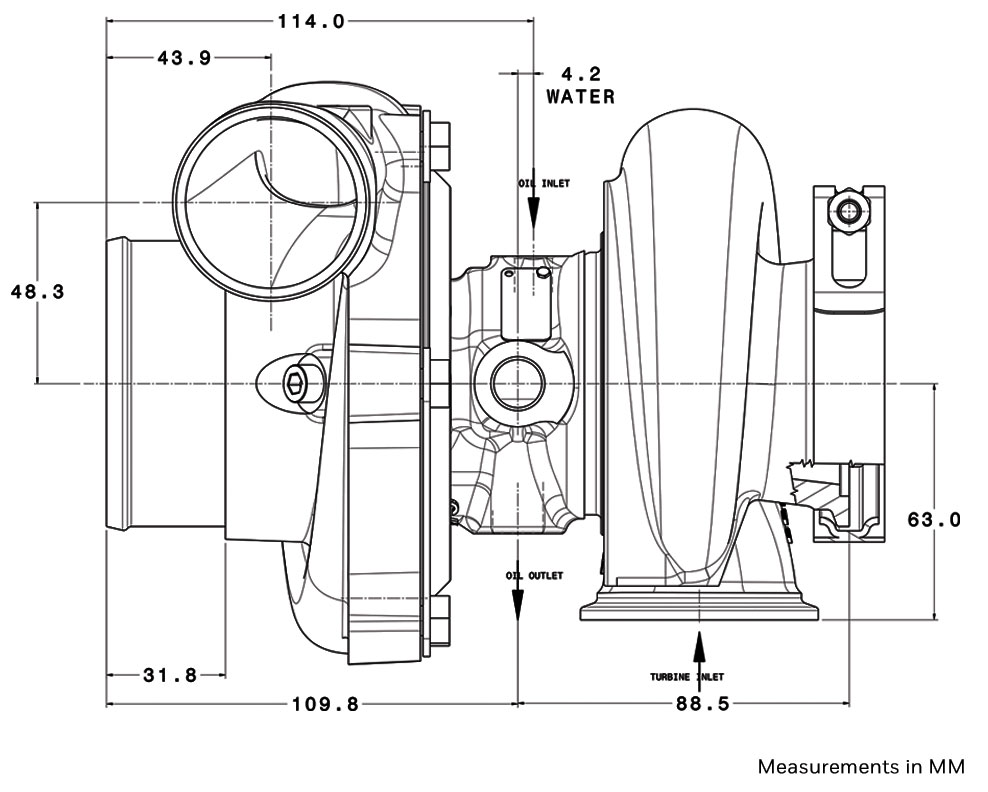

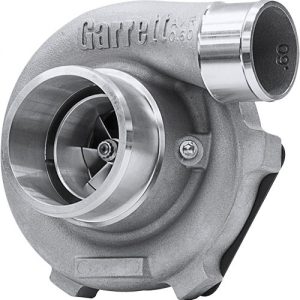

GTX2867R GEN II

Horsepower:

275 – 550

Displacement:

1.4L – 2.5L

Kategoriler:
REFERENCE

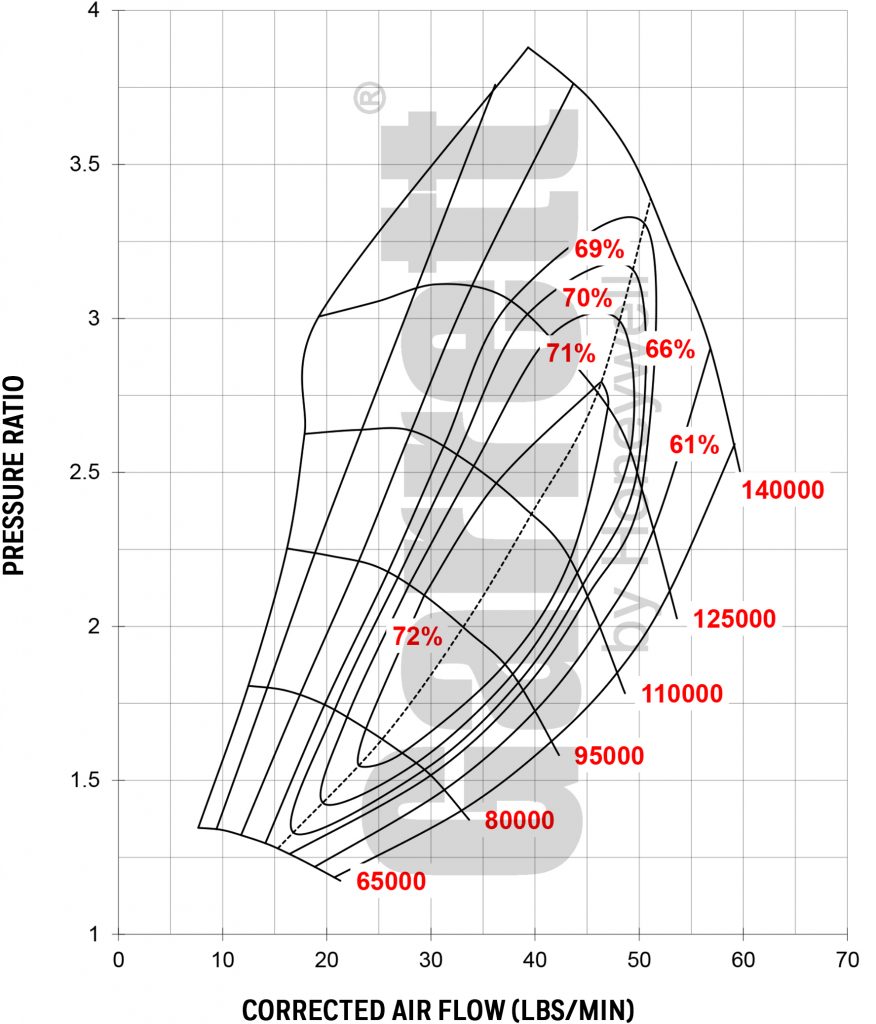

Compressor Turbine
Super Core Reference Data Inducer Exducer Trim A/R Inducer Exducer Trim
GTX2867R 50mm 67mm 55 0.60 54mm 47mm 76
Notes: Assembly Kit        PN Super Core          PN Turbine Kit PN A/R Inlet Outlet Wastegate Divided
Assembly Kit PN Includes Super Core and Turbine Kit 856800-5007S 849894-5002S 827690-0003 0.64 T25 5 bolt Wastegated N
856800-5008S 849894-5002S 827690-0004 0.86 T25 5 bolt Wastegated N
856800-5005S 849894-5002S 827690-0001 0.57 V-Band V-Band Free Float N
856800-5006S 849894-5002S 827690-0002 0.72 V-Band V-Band Free Float N

Seri

GTX GEN II

İncelemeler

Henüz yorum yapılmadı.

“GTX2867R GEN II” için yorum yapan ilk kişi siz olun

E-posta adresiniz yayınlanmayacak. Gerekli alanlar * ile işaretlenmişlerdir

Related Products

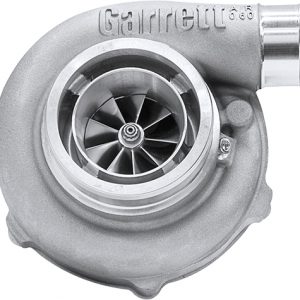

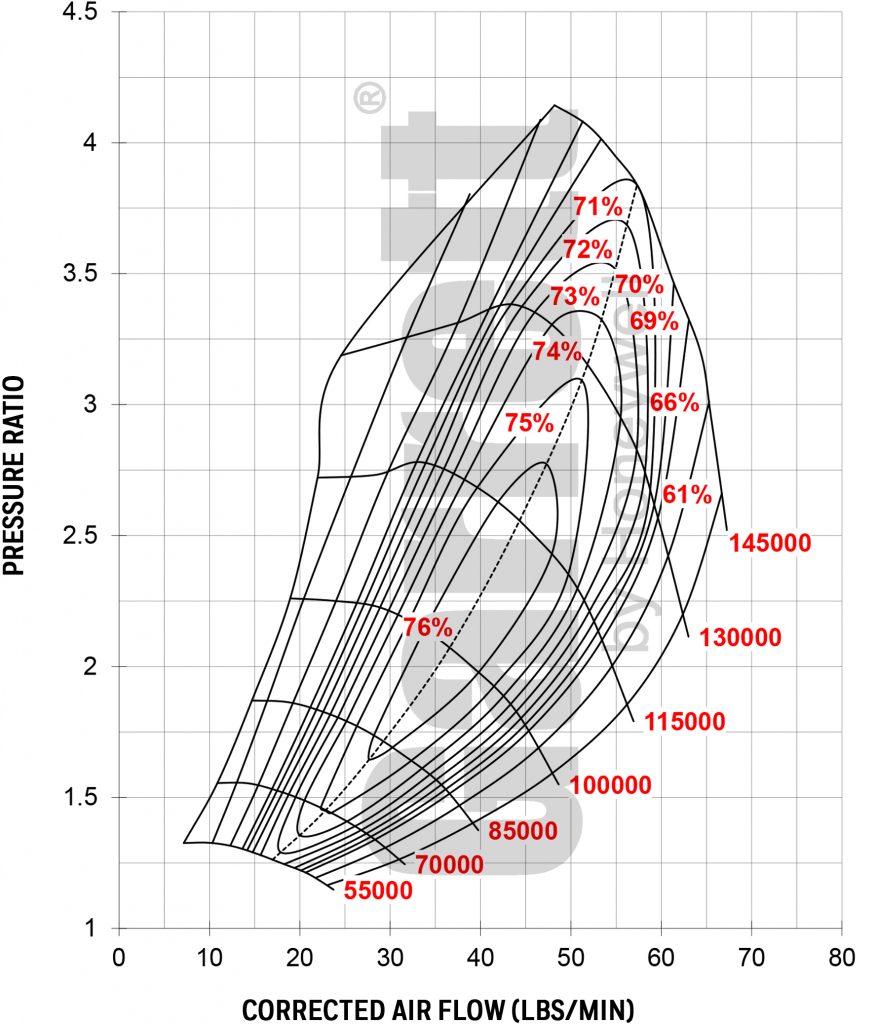

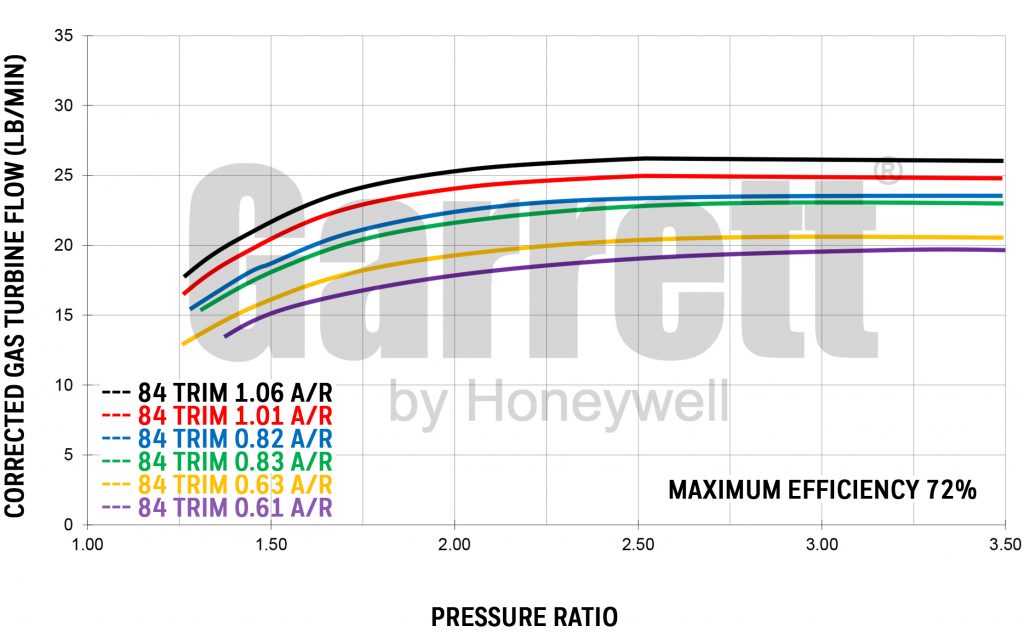

  • GTX3076R GEN II

    REFERENCE
    Compressor Turbine
    Super Core Reference Data Inducer Exducer Trim A/R Inducer Exducer Trim
    GTX3076R Standard Rotation 58mm 76mm 58 0.60 60mm 55mm 84
    GTX3076R Reverse Rotation 58mm 76mm 58 0.60 60mm 55mm 84
    Notes: Assembly Kit        PN Super Core          PN Turbine Kit PN A/R Inlet Outlet Wastegate Divided
    Assembly Kit PN Includes Super Core and Turbine Kit 856801-5027S 851154-5001S 740902-0009 0.63 T3 V-Band Free Float N
    856801-5026S 851154-5001S 740902-0008 0.82 T3 V-Band Free Float N
    856801-5025S 851154-5001S 740902-0007 1.06 T3 V-Band Free Float N
    856801-5039S 851154-5001S 740902-0036 0.61 V-Band V-Band Free Float N
    856801-5038S 851154-5001S 740902-0035 0.83 V-Band V-Band Free Float N
    856801-5037S 851154-5001S 740902-0034 1.01 V-Band V-Band Free Float N
    Wastegated Turbine Assembly PN does not include bolts, clamps, or actuator 856801-5042S 851154-5001S 771300-0006 0.63 T3 5 bolt Wastegated N
    856801-5041S 851154-5001S 771300-0005 0.82 T3 5 bolt Wastegated N
    856801-5040S 851154-5001S 771300-0004 1.06 T3 5 bolt Wastegated N
    Reverse Rotation Configuration Assembly Kit PN Super Core PN Turbine Asbly PN A/R Inlet Outlet Wastegate Divided
    856802-5004S 844621-5004S 740902-0053 0.61 V-Band V-Band Free Float N
    856802-5005S 844621-5004S 740902-0054 0.83 V-Band V-Band Free Float N
    856802-5006S 844621-5004S 740902-0055 1.01 V-Band V-Band Free Float N

    Devamını okuShow details

  • GTX3582R GEN II

    REFERENCE
    Compressor Turbine
    Super Core Reference Data Inducer Exducer Trim A/R Inducer Exducer Trim
    GTX3582R Standard Rotation 66mm 82mm 64 0.70 68mm 62mm 84
    GTX3582R Reverse Rotation 66mm 82mm 64 0.70 68mm 62mm 84
    Notes: Assembly Kit        PN Super Core          PN Turbine Kit PN A/R Inlet Outlet Wastegate Divided
    Assembly Kit PN Includes Super Core and Turbine Kit 856801-5069S 851154-5004S 740902-0012 0.63 T3 V-Band Free Float N
    856801-5068S 851154-5004S 740902-0011 0.82 T3 V-Band Free Float N
    856801-5067S 851154-5004S 740902-0010 1.06 T3 V-Band Free Float N
    856801-5072S 851154-5004S 740902-0018 0.63 T4 V-Band Free Float N
    856801-5071S 851154-5004S 740902-0017 0.82 T4 V-Band Free Float N
    856801-5070S 851154-5004S 740902-0016 1.06 T4 V-Band Free Float N
    856801-5081S 851154-5004S 740902-0033 0.61 V-Band V-Band Free Float N
    856801-5080S 851154-5004S 740902-0032 0.83 V-Band V-Band Free Float N
    856801-5079S 851154-5004S 740902-0031 1.01 V-Band V-Band Free Float N
    Reverse Rotation Configuration 856803-5004S 844626-5004S 740902-0056 0.61 V-Band V-Band Free Float N
    856803-5005S 844626-5004S 740902-0057 0.83 V-Band V-Band Free Float N
    856803-5006S 844626-5004S 740902-0058 1.01 V-Band V-Band Free Float N

    Devamını okuShow details

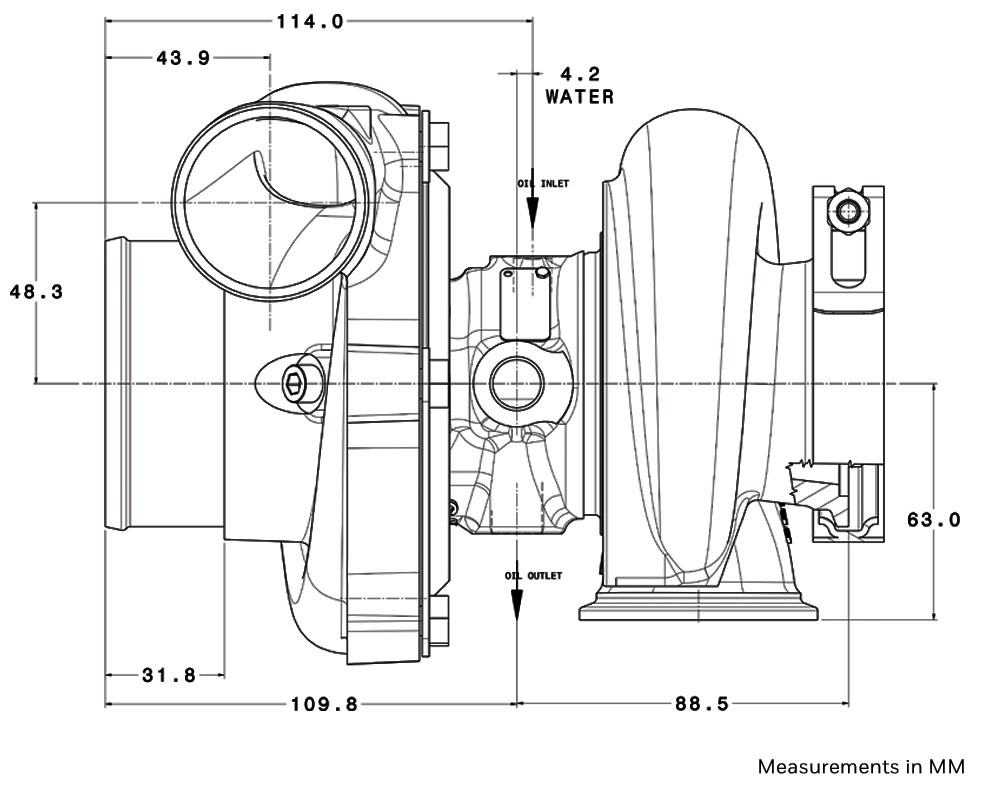

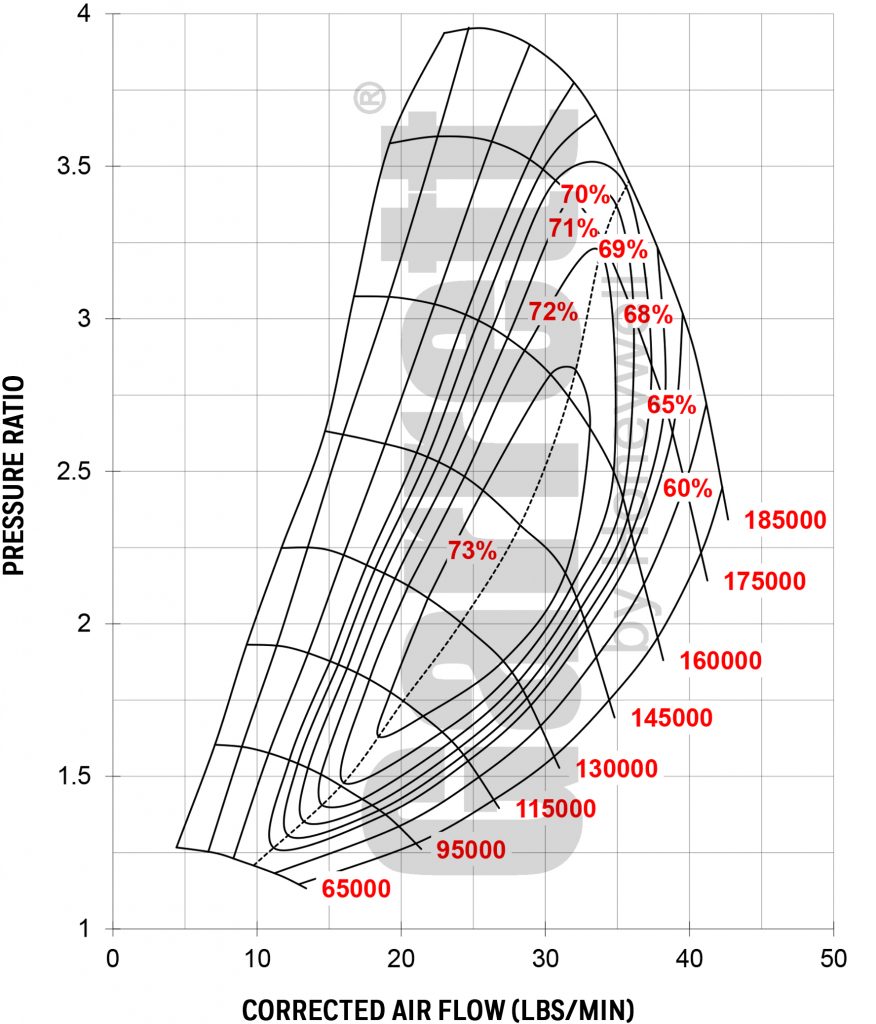

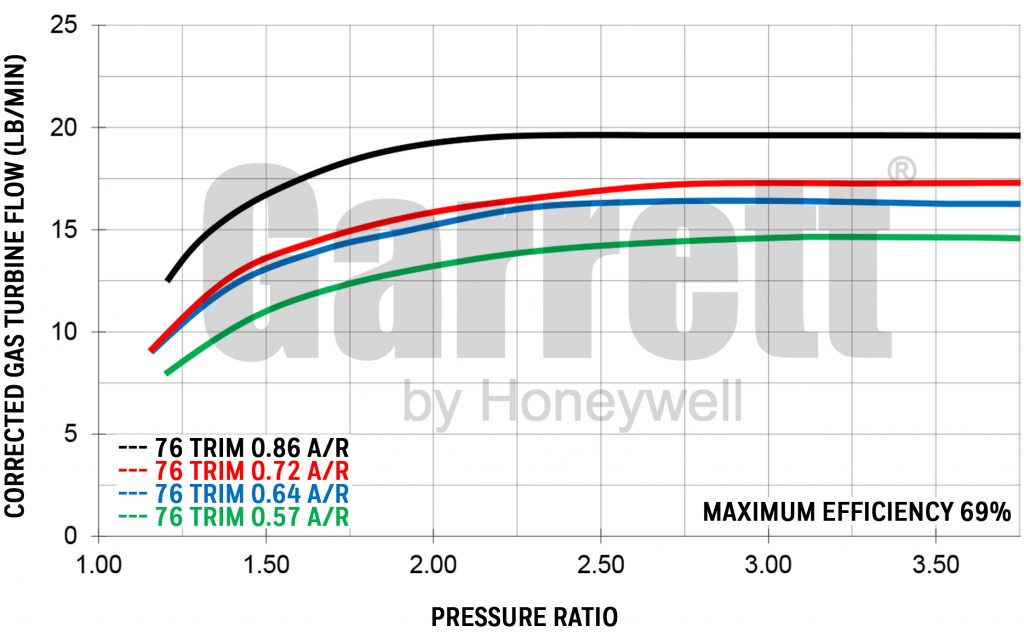

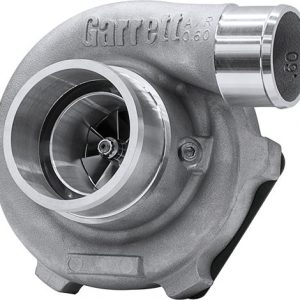

  • GTX2860R GEN II
