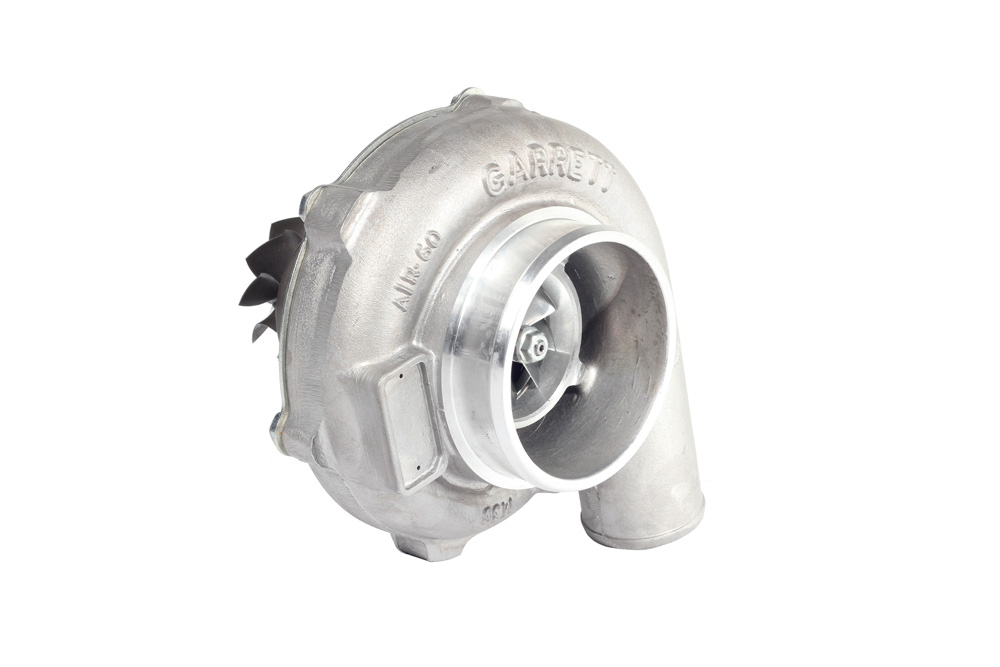

GTX2871 GEN I

GTX2871R

Horsepower:

340 – 560

Displacement:

1.8L – 3.0L

Kategoriler:
REFERENCE
Turbo Reference Data Compressor Turbine
Turbo PN CHRA PN Inducer Exducer Trim A/R Wheel Dia. Trim A/R
836040-5004S 836012-5004S 49.7mm 67.4mm 55 0.60 53.9mm 76 0.86
Notes: Turbine Kit PN A/R Inlet Outlet Wastegate Trim
Super Core and Turbine Kit Sold Separately 430609-0230  0.64 T25 5 bolt Wastegated 62
430609-0231  0.86 T25 5 bolt Wastegated 76
740902-0552 0.52 V-Band V-Band Free Float 76
827690-0001 0.57 V-Band V-Band Free Float 76
827690-0002  0.72 V-Band V-Band Free Float 76
827690-0003  0.64 T25 5 bolt Wastegated 76
827690-0004  0.86 T25 5 bolt Wastegated 76
GTX2871 GEN I
GTX2871 GEN I

İncelemeler

Henüz yorum yapılmadı.

“GTX2871R” için yorum yapan ilk kişi siz olun

E-posta adresiniz yayınlanmayacak. Gerekli alanlar * ile işaretlenmişlerdir

Related Products

  • GTX2871 GEN I

    GTX3071R

    REFERENCE
    Turbo Reference Data Compressor Turbine
    Turbo PN CHRA PN Inducer Exducer Trim A/R Wheel Dia. Trim A/R
    836042-5002S 836014-5002 54.1mm 74.1mm 58 0.60 60mm 84
    Notes: Turbine Kit PN A/R Inlet Outlet Wastegate Trim
    Super Core and Turbine Kit Sold Separately 740902-0001 1.06 T3 4 bolt Free Float 84
    740902-0002 0.82 T3 4 bolt Free Float 84
    740902-0003 0.63 T3 4 bolt Free Float 84
    740902-0007 1.06 T3 V-Band Free Float 84
    740902-0008 0.82 T3 V-Band Free Float 84
    740902-0009 0.63 T3 V-Band Free Float 84
    740902-0013 1.06 T4 V-Band Free Float 84
    740902-0014 0.82 T4 V-Band Free Float 84
    740902-0015 0.63 T4 V-Band Free Float 84
    740902-0035 0.83 V-Band V-Band Free Float 84
    740902-0036 0.61 V-Band V-Band Free Float 84
    GTX3071 GEN I
    GTX3071 GEN I
    GTX3071 GEN I
    GTX3071 GEN I
    Devamını okuShow details
  • GTX2860R GEN I

    GTX2860R

    REFERENCE
    Turbo Reference Data Compressor Turbine
    Turbo PN CHRA PN Inducer Exducer Trim A/R Wheel Dia. Trim A/R
    836040-5002S 836012-5002S 45.7mm 60mm 58 0.60 53.9mm 76 0.86
    Notes: Turbine Kit PN A/R Inlet Outlet Wastegate Trim
    Super Core and Turbine Kit Sold Separately 430609-0230  0.64 T25 5 bolt Wastegated 62
    430609-0231  0.86 T25 5 bolt Wastegated 76
    740902-0552 0.52 V-Band V-Band Free Float 76
    827690-0001 0.57 V-Band V-Band Free Float 76
    827690-0002  0.72 V-Band V-Band Free Float 76
    827690-0003  0.64 T25 5 bolt Wastegated 76
    827690-0004  0.86 T25 5 bolt Wastegated 76
    GTX2860R GEN I
    GTX2860R GEN I

    Devamını okuShow details
  • GTX2867 GEN I

    GTX2867R

    REFERENCE
    Turbo Reference Data Compressor Turbine
    Turbo PN CHRA PN Inducer Exducer Trim A/R Wheel Dia. Trim A/R
    836040-5005S 836012-5005S 54.1mm 71.4mm 58 0.60 53.9mm 76 0.86
    Notes: Turbine Kit PN A/R Inlet Outlet Wastegate Trim
    Super Core and Turbine Kit Sold Separately 430609-0230  0.64 T25 5 bolt Wastegated 62
    430609-0231  0.86 T25 5 bolt Wastegated 76
    740902-0552 0.52 V-Band V-Band Free Float 76
    827690-0001 0.57 V-Band V-Band Free Float 76
    827690-0002  0.72 V-Band V-Band Free Float 76
    827690-0003  0.64 T25 5 bolt Wastegated 76
    827690-0004  0.86 T25 5 bolt Wastegated 76

    Devamını okuShow details
