GTX3585 GEN I

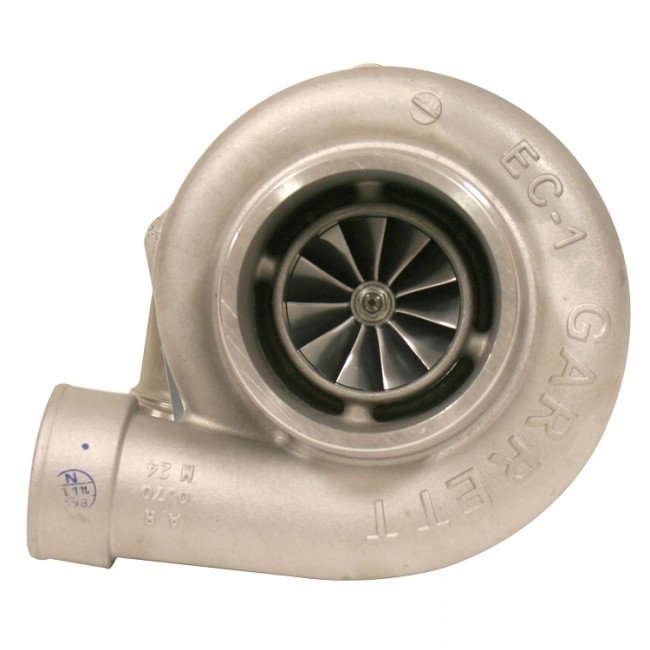

GTX3582R

Horsepower:

400 – 750

Displacement:

2.0L – 4.5L

Kategoriler:
REFERENCE
Turbo Reference Data Compressor Turbine
Turbo PN CHRA PN Inducer Exducer Trim A/R Wheel Dia. Trim A/R
836047-5002S 62.5mm 82.5mm 56 0.70 68mm 84
Notes: Turbine Kit PN A/R Inlet Outlet Wastegate Trim
Super Core and Turbine Kit Sold Separately 740902-0004 1.06 T3 V-Band Free Float 84
740902-0005 0.82 T3 4 bolt Free Float 84
740902-0006 0.63 T3 4 bolt Free Float 84
740902-0010 1.06 T3 V-Band Free Float 84
740902-0011 0.82 T3 V-Band Free Float 84
740902-0012 0.63 T3 V-Band Free Float 84
740902-0016 1.06 T4 V-Band Free Float 84
740902-0017 0.82 T4 V-Band Free Float 84
740902-0018 0.63 T4 V-Band Free Float 84
740902-0021 0.61 V-Band V-Band Free Float 84
GTX3585 GEN I
GTX3585 GEN I
